Chilled Water Ducted Fan Coil Fully Enclosed Water Horizontal Concealed Ducted Fan Coil Unit Static Pressure Box
Product Description
Efficient and energy saving

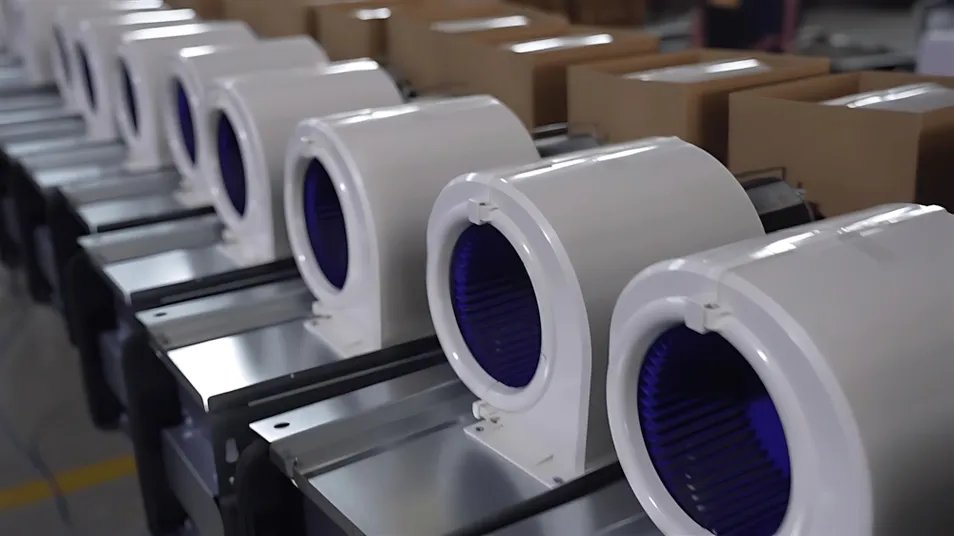

Efficient ABS blower which is light weighted while statically and dynamically balanced.

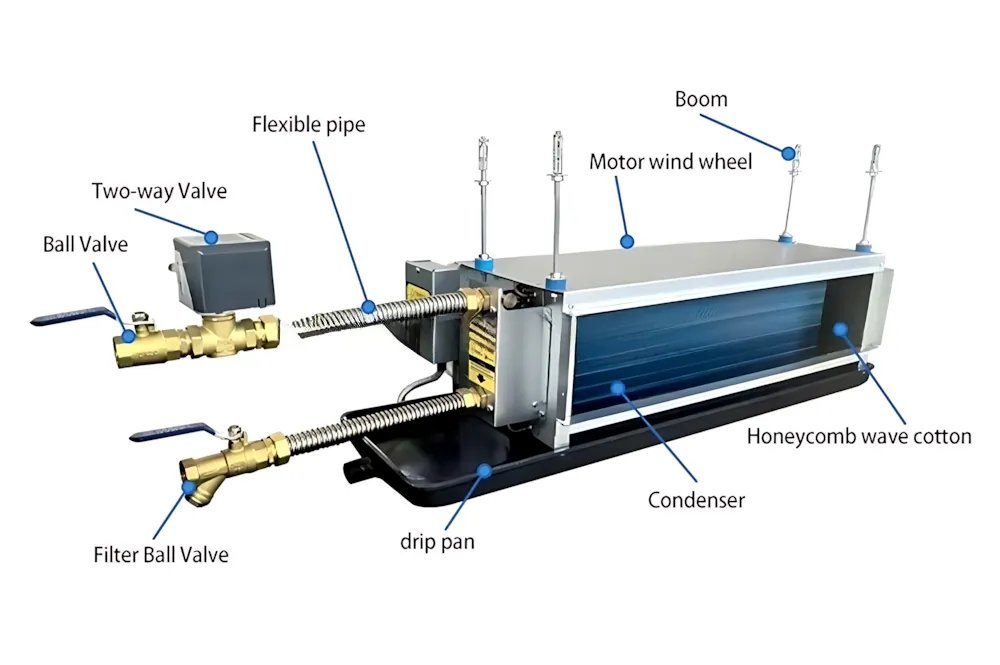

Excellent thinwall copper tube and efficient hydrophilic aluminum fin are under water pressure bonded treatment.Fan Coil Unit patent inverse crossing circuit to reach the best heat transfer efficiency. Brass water distributor is used for improving water flow distribution, in order to provide better heat transfer effect.
Quiet Operation
Fan Coil Unit low noise and permanent capacity motor, unique ABS centrifugal blower, Fan Coil Unit all of them pass dynamically balance test, to ensure unit operate quietly and efficiently.
3-speed motor, ball bearing, long lifespan; rubber vibration isolator reduces operation noise.
Stable and Reliable
U-shaped tube bending, reducing soldered dot and leakage point. ?
Fan Coil Unit drain pan is made of high grade stainless steel plate, modeling processing; surface has been under hot dipped electroforming painting treatment. 7mm PE thermal insulation foam is applied on the drain pan to prevent condensation and leakage from occurring. Furthermore? Fan Coil Unit the width and length of the drain pan has been specifically designed to accommodate the water drop from the water inlet/outlet and electrically operated valve.There is fuse in power supply inlet side to prevent motor burned because of wrong wiring. Fan Coil Unit reliable and stable motor which enjoys good reputation in the market.
Fan Coil Unit drain pan is made of high grade stainless steel plate, modeling processing; surface has been under hot dipped electroforming painting treatment. 7mm PE thermal insulation foam is applied on the drain pan to prevent condensation and leakage from occurring. Furthermore? Fan Coil Unit the width and length of the drain pan has been specifically designed to accommodate the water drop from the water inlet/outlet and electrically operated valve.There is fuse in power supply inlet side to prevent motor burned because of wrong wiring. Fan Coil Unit reliable and stable motor which enjoys good reputation in the market.
Different Models
Fan Coil Unit static pressure: 12Pa, 30Pa, 50Pa.
Fan coil unit series: horizontal exposed type, horizontal concealed type, vertical concealed type, vertical exposed type, cassette type, large air volume FCU.
Accessories: 3-speed switch, return air box, extended drain pan, electronic two-way valve, electrical heater, air cleansing module.
All above are for your selection.
Fan coil unit series: horizontal exposed type, horizontal concealed type, vertical concealed type, vertical exposed type, cassette type, large air volume FCU.
Accessories: 3-speed switch, return air box, extended drain pan, electronic two-way valve, electrical heater, air cleansing module.
All above are for your selection.
|
Model ?????????????????????FCU
|
34
|
51
|
68
|
85
|
102
|
136
|
170
|
||
|
Air flow
|
H
|
m3/h
|
340
|
510
|
680
|
850
|
1020
|
1360
|
1700
|
|
M
|
m3/h
|
255
|
383
|
510
|
638
|
765
|
1020
|
1275
|
|
|
L
|
m3/h
|
170
|
255
|
340
|
425
|
510
|
680
|
850
|
|
|
Totalcooling capacity *
|
H
|
W
|
1800
|
2700
|
3600
|
4500
|
5400
|
7200
|
9000
|
|
M
|
W
|
1440
|
2160
|
2880
|
3600
|
4320
|
5760
|
7200
|
|
|
L
|
W
|
1170
|
1755
|
2340
|
2925
|
3510
|
4680
|
5850
|
|
|
Sensiblecooling capacity*
|
H
|
m3/h
|
1307
|
1961
|
2615
|
3268
|
3922
|
5229
|
6537
|
|
M
|
m3/h
|
1177
|
1765
|
2353
|
2942
|
3530
|
4706
|
5883
|
|
|
L
|
m3/h
|
1059
|
1588
|
2118
|
2647
|
3177
|
4236
|
5295
|
|
|
Heating capacity*
|
H
|
W
|
2700
|
4050
|
5400
|
6750
|
8100
|
10800
|
13500
|
|
M
|
W
|
2160
|
3240
|
4320
|
5400
|
6480
|
8640
|
10800
|
|
|
L
|
W
|
1857
|
2633
|
3510
|
4388
|
5265
|
7020
|
8775
|
|
|
Standard external pressure
|
Pa
|
12
|
12
|
12
|
12
|
12
|
12
|
12
|
|
|
Power input
|
12Pa
|
W
|
35.2
|
46
|
57.4
|
69
|
86
|
123
|
160
|
|
30Pa
|
W
|
39.5
|
55
|
66.9
|
82
|
100
|
136
|
175
|
|
|
50Pa
|
W
|
49.5
|
59
|
85.4
|
93
|
108
|
155
|
188
|
|
|
Soundpressure Level**
|
12Pa
|
dB(A)
|
37
|
39
|
41
|
43
|
45
|
46
|
48
|
|
30Pa
|
dB(A)
|
40
|
42
|
44
|
46
|
47
|
48
|
50
|
|
|
50Pa
|
dB(A)
|
42
|
44
|
46
|
47
|
49
|
50
|
52
|
|
|
Net weight
|
kg
|
10.5
|
14.6
|
16
|
16.5
|
18.5
|
23.5
|
25.5
|
|
|
Water flow rate
|
m3/h
|
0.4
|
0.51
|
0.71
|
0.92
|
1.05
|
1.4
|
1.75
|
|
|
Water pressure drop
|
kPa
|
20
|
20
|
25
|
30
|
35
|
40
|
40
|
|
|
Water connections
|
Inch
|
RC 3/4
|
|||||||
|
Drain pipe
|
Inch
|
RC 3/4
|
|||||||
|
Fan motor quantity
|
Nr.
|
1
|
1
|
1
|
1
|
1
|
2
|
2
|
|
|
Fan quantity
|
Nr.
|
1
|
2
|
2
|
2
|
2
|
3
|
4
|
|
|
Max. working pressure
|
Mpa
|
2
|
|||||||
|
Power supply
|
/
|
220V/1Ph/50Hz
|
|||||||
